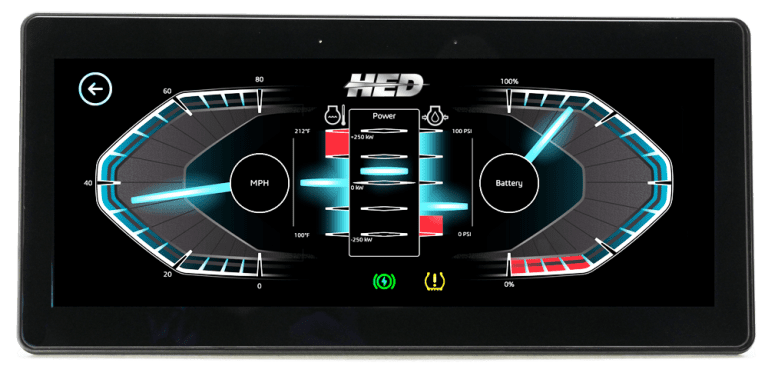

A digital vehicle dashboard display shows speed in MPH on the left, battery level on the right, and center indicators for power, thermal data, and warning icons for system status at the bottom.

CL-716

Our largest widescreen and similar to the CL-715 – often used as a digital dash or primary operator interface.
Size
15"
I/O
5/2
HMI
Touch with optional PCAP
Comms
4 CAN, 2 USB, 2 Ethernet

Product Specifications

Hardware

Overview

i.MX8M Plus Quad Core Processor running at 1.6 GHzwith advanced graphics GPU and NPU up to 2.3 TOPSfor AI and Edge computing

MCU

N/A

Flash

32GB, enhanced mode 3D TLC NAND eMMCpseudoSLC

RAM

2GB 32-bit LPDDR4

CPU

4x Cortex A53 @ 1.6 GHz

interfaces

CAN

4x CAN-FD ports

Accelerometer

N/A

Ethernet

2x Gigabit Ethernet ports with auto-negotiate:1x 1000Base-T1 (2-wire)1x 1000Base-T (8-wire)

USB

2x USB, 1x USB-C 3.0 (sealable), 1x USB-A 2.0 (M12)

Mechanical

Housing Material

PC-ABS Plastic with Aluminum Heatsink (back cover)

Installation

Panel mounted (see dimensional drawings)

Connectors

  • 1x 18-pin Deutsch DT for Power, CAN, I/O
  • 1x USB-C for USB-C 3.0 Interface
  • 4x M12 for USB-A, Audio Line In/Out, 2-Wire
  • Ethernet, 8-Wire Ethernet

Dimensions

408.7 x 185.8 x 69.7

weight

5.02 lbs

Mounting & Torque

M5x0.8mm fastenerMounting Torque:Typical: 32 +/- 2 in-lbsThread locking patch recommended

Buttons

No

Indicators

1x Tri-Color LED

Electrical

Operating Voltage

8-32VDC

Key Switch

Standard for Start/Shutdown, Suspend/Resume

Max I/O Available

5/2

Inputs

5x software configurable to switch to Battery/Groundand Analog 0-5.5V

Outputs

2x software configurable to 2A Sourcing Digital orPWM

Product Ratings

IP Class

IP67

EU/CE Compliance

2014/30/EU – CE Mark

FCC/ISED Compliance

FCC Part 15 (b) and ISED Canada.

Vibrations

IEC 60068-2-64

Shock

Solar

ISO 4892-2

Salt Fog

IEC 60068-2-52

Chemical

ISO 16750-5

Electrostatic Discharge

  • ISO 10605
  • IEC 61000-4-2

Conducted Transient Immunity

ISO 7637-2

Starting Profile

ISO 16750-2

Reverse Polarity

ISO 16750-2

Load Dump

ISO 16750-2

EMC

  • EN ISO 13766
  • ISO 14982
  • UN ECE R10
  • EN 13309
  • EN 50498
  • CISPR 25

Temperature Range

  • Operating: -40C to +60C
  • Storage: -40C to +85C

Software Framework & Tools

Development Environment

Virtual machine or Native Linux

Programming

Supported languages include C++, C, QML, JavaScript,Python, HTML5

UI Frameworks

Supports Qt6 and Qt5 (Containers allows any versionof Qt to be implemented). Qt Commercial is optional,enables closing access to the system. Support for Webframeworks.

CAN Protocol

Configurable for J1939 and CANopen networks

GCC Compiler

Containers allows any GCC Compiler to be used thatsupports ARMv8

Windowing

Wayland with Sway

Digital Video

Digital IP Camera support

Operating System

System

Custom Linux system with Yocto 4.0+ (Long termsupport)

Boot Up Time

Cold boot ~8-10 seconds

Kernel

5.15+ (Long Term Support)

BSP

Customer applications are created inside of an OCIcompliant container (ex: Docker/Podman). Examplecontainers are provided to help customers start theirprojects.

Computing & Graphics APIs

Support for advanced UX and computing taskspossible: OpenGL ES, Vulkan, OpenCL, OpenVG

Display Details

Type

IPS TFT with >85° viewing angles in all directions

Cover Lens

Hardened Glass with AR coating

Optical Bonding

Optically bonded for enhanced sunlight readability

Size & Resolution

1920 x 7208:3 aspect ratio

Color Depth

24-bit, 16.7 million

Contrast Ratio

1000:1

Dimming

Standard in 0.1% increments 0-100%

Ambient Light Sensor

Standard, available for automatic dimming

Touch Screen

Optional Projected Capacitive (PCAP) with 2-pointmulti-touch for gestures. Calibrated for use withheavy gloves and wet environments.

Status LED

RGB LED on front of display

Audio

Audio Line Out/Audio Line In (req. external amplifier)

HMI

Real Time Clock

Yes – with internal battery (15 year life – typical)
