CL-6014

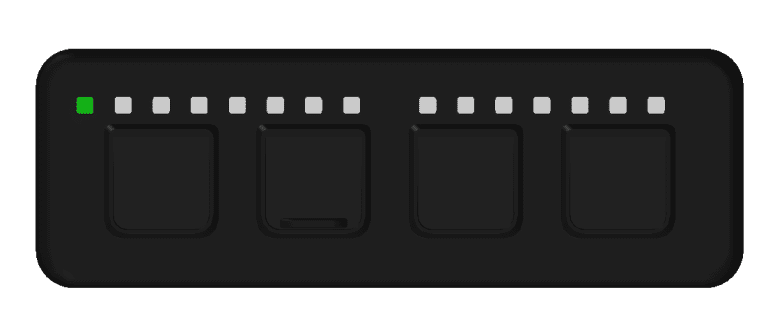

A rugged 1×4 keypad with software controlled button and indicator LEDs and customizable button icons.
Configuration
1x4
Buttons
4
Indicators
14
Bar Graph
Yes

Product Specifications

Full Description

Designed for the Commercial Vehicle and Off-Highway Equipment markets, HED’s new CAN Keypad lineup is highly configurable and will stand up to the harshest environments while also delivering durability and an economical price point.

Fully Configurable – Configure the exact keypad needed for your specific requirements.
• Full spectrum RGB tricolor LEDs
• Individually controlled and software configured button and indicator LEDs
• Dimmable LED backlit icons and indicators
• Bar graph capable

Rugged Reliability – Built to withstand severe-duty mobile applications.
• IP67 and IP6K9K – submersible and high pressure wash
• Extreme temperature range
• Long life cycle
• Over 30,000 hours Keypad life
• Shock, vibration and chemical resistant
• Sunlight readability options

Affordable Specs – We included everything you need and nothing you don’t – keeping costs down.
• J1939 or CANopen
• Easy installation
• Great tactile feedback
• Integrated connector
• Seven sizes (4-16 buttons)
• Software programmable LEDs enable endless possibilities
• New, lower price point

Hardware

Overview

ArmTM Cortex-M7 Microcontroller running at 120 MHz

MCU

S32K310

Flash

512 KB

RAM

112 KB

interfaces

CAN

1x CAN-FD port

Mechanical

Housing Material

Nylon 6/6 15% glass filled

Connectors

Deutsch DT06-4S (with W4S wedge)

Dimensions

118.1 x 39.9 x 14.63

Weight

0.20 lbs

Contacts

Deutsch 0462-201-16141 16AWG Sockets

Plugs

n/a – need wires in all 4 pins

Wire Size

16 AWG

Mounting & Torque

Fastener for #10-32 threaded stud
Mounting Torque:

  • Typical: 10-18 in-lbs
  • Max: 22 in-lbs
    *Note: Lock washer should be utilized

Electrical

Operating Voltage

8-32VDC

Current

  • <60mA (12V), <50mA (24V) : no LEDs on
  • <200mA (12V), <110mA (24V) : typical LED config (all
    backlights White at 100%, all indicators Green 100%)

Product Ratings

IP Class

IP67, IP6K9K (from front with appropriatelyassembled mating conector)

EU/CE Compliance

CE 2014/30/EU

FCC / ISED Compliance

FCC Part 15 (b) and ISED Canada

Vibrations

ISO 16750-3

Shock

ISO 16750-3

Solar

ISO 4892-2

Salt Fog

IEC 60068-2-52

Chemical

ISO 16750-5

Electrostatic Discharge

  • ISO 10605
  • IEC 61000-4-2

Conducted Transient Immunity

ISO 7637-2

Starting Profile

ISO 16750-2

Reverse Polarity

ISO 16750-2

Load Dump

ISO 16750-2

EMC Conformity

  • EN ISO 13766
  • ISO 14982
  • UN ECE R10
  • EN 13309
  • EN 50498
  • CISPR 25

Temperature Range

  • Operating: -40C to +70C
  • Storage: -40C to +85C

Software Framework & Tools

CAN Protocol

J1939 and CANopen

Software Configurations

Ability to change Node ID in CANopen and J1939Client

Operating System

System

FreeRTOS

Boot Up Time

150msec (approximate)

Downloads

READY TO DOWNLOAD?

HED CL-6000 Series

Datasheet for HED’s newest lineup of CAN bus keypads. Designed for the Commercial Vehicle and Off-Highway Equipment markets, HED’s new CAN Keypad lineup is highly configurable and will stand up to the harshest environments while also delivering durability and an economical price point.

Customize the Ideal Keypad

HED’s CAN Keypads are highly configurable and provide a tailor-made interface for your machine.
start customizing

LED indicators

Customize the production of your CAN keypad by determining which LED indicators will be active. Each individual indicator is then software controlled for color, brightness and function.

Backlit buttons

Dimmable LED backlit buttons are customized with your selected graphics and then controlled with easy-to-use software for color, brightness, and function.

Endless possibilities

Full-spectrum RGB colors and dimmable backlit icons along with software programmable LEDs provide options like bar graph capabilities for fan and speed control and many other options to expand the keypad functionality.
