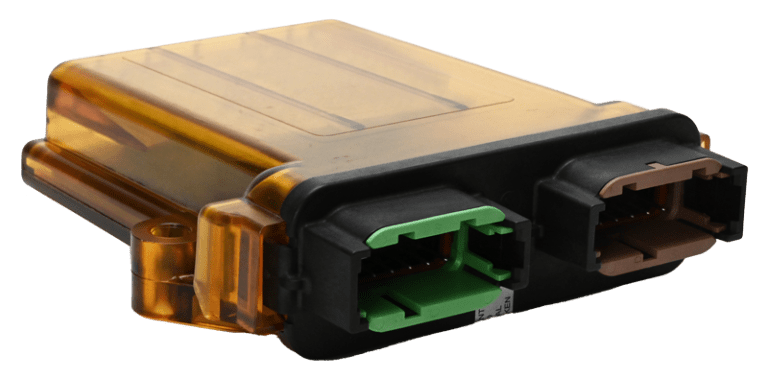

A close-up photo of an electronic control module with a translucent amber plastic casing and two multi-pin connectors, one green and one brown, on a black front panel.

,

CL-305

A compact unit that can drive higher current loads for lighting, pumps, fans and small motors.
Inputs
5
Outputs
8
Current
10A PWM outputs
CAN
1

Product Specifications

Hardware

Overview

16-bit HCS12X Microcontroller running at up to 25 MHz

MCU

Client: 9S12C32Master: 9S12C128

Flash

Client: 32 KBMaster: 128 KB

RAM

Client: 2 KBMaster: 4 KB

interfaces

CAN

1x J1939 CAN port

Mechanical

Housing Material

Black Box: PA66 GF15Nylon 66 / 15% Glass Fibers)Clear Box: Ultem

Installation

Panel mount

Connectors

DTM06-12SC DTM06-12SD WM-12S (wedge) – Two needed (one per connector) 0462-201-20141 20AWG sockets 0462-005-20141 16/18AWG sockets 0413-204-2005 Sealing Plugs – Unused pins are required to be sealed to maintain module sealing

Dimensions

4.65″ x 5.25″ x 1.40″

weight

~0.56 lbs

contacts

  • 20 AWG: 0462-201-20141
  • 16-18 AWG: 0462-005-20141

Plugs

0413-204-2005 Sealing Plugs

Wire Size

20AWG or 16-18AWG

Mounting & Torque

1/4″ or M6 Fastener62-88 in-lb

Indicators

1x Green Power1x Red Status

Electrical

Operating Voltage

8-32VDC

Key Switch

No

Max I/O Available

5/8

Inputs

1x switch to ground input

Outputs

8x 10A PWM outputs with current limiting

Product Ratings

IP Class

IP67

EU/CE Compliance

CE Marked

Temperature Range

  • Operating: -40C to +70C
  • Storage: -40C to +85C

Downloads

READY TO DOWNLOAD?
PFS-CL305-A2

CL-305 technical information on Inputs, Outputs, CAN, Operating Voltage and other features.

Product Specs & Details, User Manual
Deutsch Box – 2 Connector STEP

CL-103 Step file

Step file
HED J1939 Module and Keypad Specifications

HED J1939 Module and Keypad Communication Specifications. This document details the HED J1939 compliant protocol for control of HED’s I/O modules and keypads.

Product Specs & Details, Software
HEDTD-CL305-103-30-A1

CL-305 module I/O and features

Product Specs & Details
CL305-106-A1 Data Sheet

CL-305 module I/O and features

Product Specs & Details
CL305-103-D1 Data Sheet

CL-305 module I/O and features

Product Specs & Details
CL305-102-B1 Data Sheet

CL-305 module I/O and features

Product Specs & Details
CL305-101-E1 Data Sheet

CL-305 module I/O and features

Product Specs & Details
CL305-100-D1 Data Sheet

CL-305 module I/O and features

Product Specs & Details
