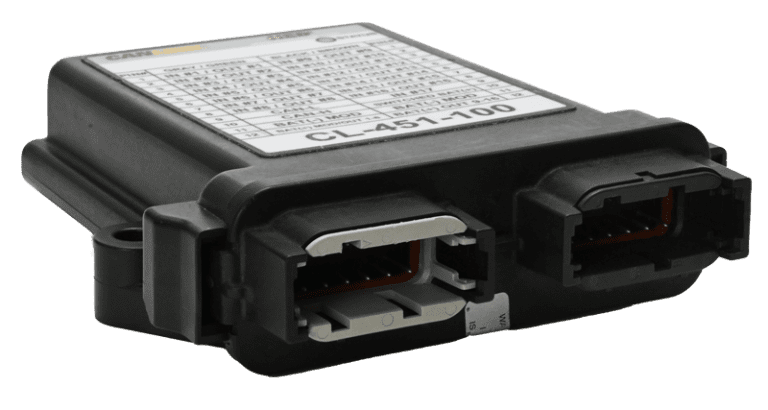

A black electronic control module with two connector ports and a white labeled sticker on top, displaying various technical specifications and the model number CL-451-100.

CL-451

Compact and typically used to drive stacked valve drive sections or outputs condensed into a single location.
Inputs
17 (total I/O)
Outputs
16 (available)
Current
3 A
CAN
1

Product Specifications

Hardware

Overview

Power Architecture® 32-bit Microcontroller running at up to 80 MHz

MCU

SPC5604B

Flash

512 KB

RAM

32 KB

interfaces

CAN

1x J1939 CAN port

Mechanical

Housing Material

Black Box: PA66 GF15Nylon 66 / 15% Glass Fibers)Clear Box: Ultem

Installation

Panel mount

Connectors

DTM06-12SA DTM06-12SB WM-12S (wedge) – Two needed (one per connector) 0462-201-20141 20AWG sockets 0413-204-2005 Sealing Plugs – Unused pins are required to be sealed to maintain module sealing

Dimensions

4.65″ x 5.25″ x 1.40″

weight

~0.56 lbs

contacts

  • 20 AWG: 0462-201-20141
  • 16-18 AWG: 0462-005-20141

Plugs

0413-204-2005 Sealing Plugs

Wire Size

20AWG or 16-18AWG

Mounting & Torque

1/4″ or M6 Fastener62-88 in-lb

Indicators

1x Green Status

Electrical

Operating Voltage

8-32VDC

Key Switch

Yes

Max I/O Available

17/16

Product Ratings

IP Class

IP67

EU/CE Compliance

No

Temperature Range

  • Operating: -40C to +70C
  • Storage: -40C to +85C

Downloads

READY TO DOWNLOAD?
PFS-CL451-A1

CL-451 technical information on Inputs, Outputs, CAN, Operating Voltage and other features.

Product Specs & Details, User Manual
Deutsch Box – 2 Connector STEP

CL-103 Step file

Step file
HED J1939 Module and Keypad Specifications

HED J1939 Module and Keypad Communication Specifications. This document details the HED J1939 compliant protocol for control of HED’s I/O modules and keypads.

Product Specs & Details, Software
HEDTD-CL451-100-XX-B1

CL-451 module I/O and features

Product Specs & Details
