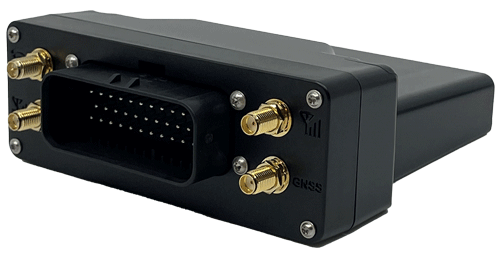

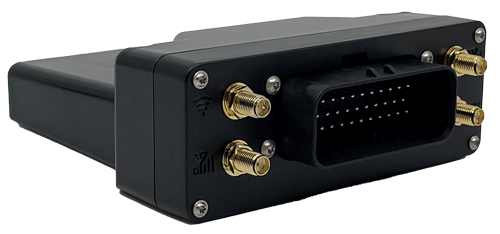

CL-T27

Provides the ability for remote updates & diagnostics with over-the-air programming (OTA) and flexible applications tools.
Inputs
2
Outputs
1
Current
300mA
CAN
2

Product Specifications

Full Description

The CL-T27 is built to power the future of IoT innovation in rugged environments by offering over-the-air programming (OTA) with the flexibility of using our applications or your own tools.

  • Build Your Own Solution – The T27 telematics hardware from HED enables OEMs to build vehicle specific applications leveraging HED standard programming tools or create custom applications using Linux.
  • Predictive Maintenance – Decrease downtime by monitoring asset conditions. Create early notifications and warnings using real-time & historical trend monitoring.
  • Remote Vehicle Programming – Update, reprogram and adjust vehicle capabilities with the touch of a button with Over-the-Air (OTA) programming via 4G LTE Cat-M1, Cat-4 or Wi-Fi connectivity.
  • Remote Diagnostic and Troubleshooting – Remote diagnostics and troubleshooting through wireless connectivity. Adopt HED standard Portal, View or reflector applications or build with your own back office tools.
  • Multiple Local Connectivity Options – USB, Ethernet, Wi-Fi, and CAN capabilities to enable a variety of OEM interfaces and applications.
  • Integrated Security – Built in security with Industry standard secure boot and on-board, security key use and storage, and encrypted communications.

Hardware

Overview

Overview Cortex-A7 ARM Processor running at 800 MHz

Flash

8GB eMMC Flash

RAM

512MB DDR3 RAM

CPU

Cortex A7 @ 800 MHz (single-core)

interfaces

CAN

2x CAN ports

Ethernet

1x Ethernet 10/100 Base-T

USB

1x USB OTG (supply up to 500mA to device, max 2.5W)

Wi-Fi

Dual-band Wi-Fi 802.11

Mechanical

Housing Material

Polycarbonate

Installation

30mm M4; Torque: 40 In/Lbs. (4.5 Nm)

Connectors

1x 35-pin AMPSEAL

Dimensions

139.3 mm x 123.3 mm x 44.8 mm

weight

.65 lbs

Electrical

Operating Voltage

9V – 36V

Key Switch

Standard for Start/Shutdown

Inputs

up to 2

Outputs

1 sinking output

Product Ratings

IP Class

ISO 20653, IP67

EU/CE Compliance

2014/30/EU – CE Mark

FCC/ISED Compliance

FCC Part 15 (b) and ISED Canada

Vibrations

IEC 60068-2-64

Shock

IEC 60068-2-27

Conducted Transient Immunity

ISO 7637-2,

Starting Profile

ISO 16750-2,

Load Dump

ISO 16750-2,

Temperature Range

Operating: -40C to +65C
Storage: -40C to +80C

READY TO DOWNLOAD?

CL-T27 Product Sheet

Product details for HED’s CL-T27 Telematics Module

Mounting, Product Specs & Details
