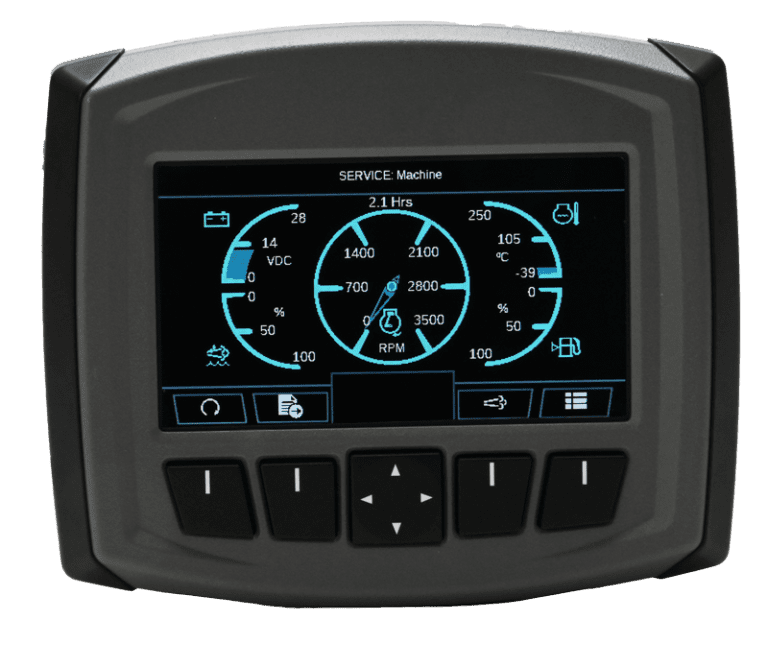

A close-up of a digital machine display showing gauges for voltage, engine temperature, oil pressure, and RPM, with several control buttons below the screen.

CL-709

A compact CAN bus display with real-time deterministic I/O and CAN interface.
Size
4.3"
I/O
9/4
HMI
Buttons
Comms
2 CAN

Product Specifications

Hardware

Overview

Power Architecture® 32-bit Microcontroller running at up to 60 MHz

MCU

MPC5606S

Flash

16MB FLASH for graphics1MB FLASH for logic

RAM

48KB

CPU

N/A

interfaces

CAN

2x J1939 CAN ports

Bluetooth

N/A

Accelerometer

N/A

Ethernet

N/A

USB

1x USB-A (for USB flash drive)

Wi-Fi

N/A

Video

N/A

Mechanical

Housing Material

PC-ABS

Installation

Panel or RAM mount (see dimensional drawings)

Connectors

  • 1x 18-pin Deutsch DT for Power, CAN, I/O
  • 1x M8 for USB-A

Dimensions

5.66″ x 4.75″ x 2.10″

weight

0.85 lbs

Mounting & Torque

Use size 8-32 fasteners, with max depth of 0.340”, and min depth of 0.250” into display. Torque to 15-20 in-lbs

Buttons

4 button

Indicators

None

Electrical

Operating Voltage

8-32VDC

Key Switch

Standard for Start/Shutdown

Max I/O Available

9/4

Inputs

Up to 9 inputs

Outputs

up to 4 outputs

Product Ratings

IP Class

IP67 (with M8 sealing cap installed)

EU/CE Compliance

2014/30/EU – CE Mark

FCC/ISED Compliance

FCC Part 15 (b) and ISED Canada.

Vibrations

ISO 16750-3

Shock

Solar

ISO 4892-2

Salt Fog

IEC 60068-2-52

Chemical

ISO 16750-5

Electrostatic Discharge

  • ISO 10605
  • IEC 61000-4-2

Conducted Transient Immunity

ISO 7637-2

Starting Profile

ISO 16750-2

Reverse Polarity

ISO 16750-2

Load Dump

ISO 16750-2

EMC Conformity

  • EN ISO 13766
  • ISO 14982
  • UN ECE R10
  • EN 13309
  • EN 50498
  • CISPR 25

Temperature Range

  • Operating: -40C to +70C
  • Storage: -40C to +80C

Software Framework & Tools

Programming

Programmable using Presto™ tool.

Display Details

Size & Resolution

4.3”

HMI

Real Time Clock

Yes – with internal battery

Downloads

READY TO DOWNLOAD?
PFS-CL709-A1

CL-709 technical information on Inputs, Outputs, CAN, Operating Voltage and other features

Product Specs & Details, User Manual
Engine CANfigurator Sales Info-A3

CL-709 Cummins tier 4 engine display and configurator specifications and features

Product Specs & Details
Engine CANfigurator Cummins Handout-A3

CL-709 Cummins tier 4 engine display and configurator specifications and features

Product Specs & Details
CL-709 Display – STEP file

Step file for HED’s CL-709 Display

Step file
HEDTD-CL709-USB-A1

CL-709 instructions for replacing USB M8 cap to maintain sealing

Product Specs & Details
HED TD-CL709-100-XX-C5 with added torque

Data Sheet for HED TD-CL709-100-XX-C5 with added torque

Product Specs & Details
CL-709 Display Cut-Out and Mounting

CL-709 display cut out and mounting instructions

Mounting
