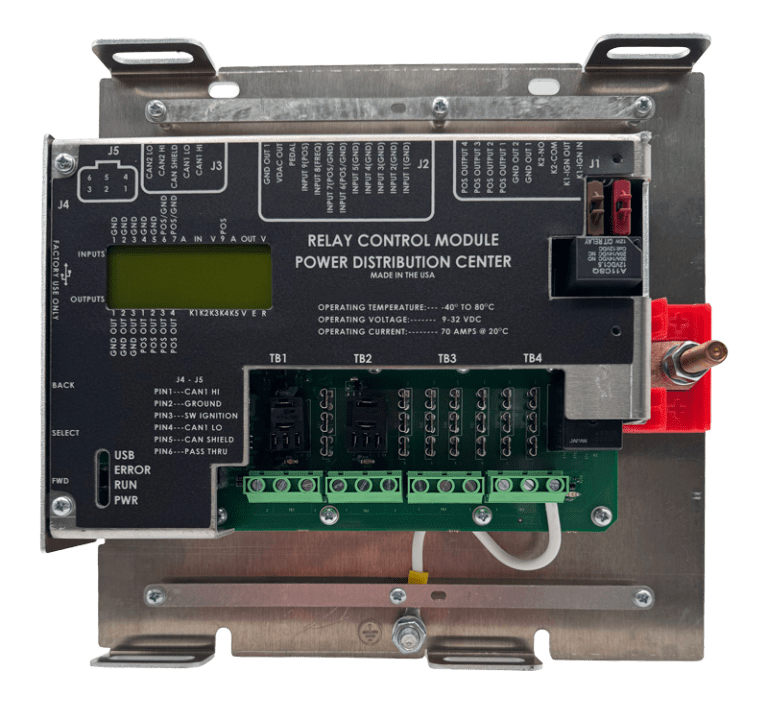

A relay control module power distribution center with labeled ports, terminal blocks, a small display screen, and a red power switch, mounted on a metal plate.

CL-311

Similar to the CL-310, but with a smaller package, a built-in LCD for diagnostics and lower current capabilities.
Inputs
10
Outputs
Solid State (7) / Relay (5)
Current
100 A
CAN
2

Product Specifications

Hardware

Overview

ArmTM Cortex-M7 Microcontroller running at 160 MHz

MCU

S32K344

Flash

4MB

RAM

512KB

interfaces

USB

1x USB-A (for USB flash drive)

Mechanical

Housing Material

Aluminum

Installation

Panel mount

Connectors

Dimensions

304.00 x 252.50 x 59.00 mm

Mounting & Torque

Bolt: 1/4” – 20 or M6 Button Head Screw w/ WasherTorque: 90-97 in-lbs

Buttons

(3) Pushbuttons for LCD navigation

Indicators

4x LEDs

Electrical

Operating Voltage

8-32VDC

Key Switch

Standard for Start/Shutdown

Max I/O Available

19/26

READY TO DOWNLOAD?

Related Products

A black rectangular electronic control module with five multi-pin connector ports and mounting holes at the corners, set against a white background.

CL-450

  • Input + Output
A powerful body controller with high I/O and multiple CAN ports allowing a bridge to multiple CAN networks.
Inputs
36
Outputs
33
Current
3 A
CAN
3
See More Details
A black electronic control module with two connector ports and a white labeled sticker on top, displaying various technical specifications and the model number CL-451-100.

CL-451

  • Input + Output
Compact and typically used to drive stacked valve drive sections or outputs condensed into a single location.
Inputs
17 (total I/O)
Outputs
16 (available)
Current
3 A
CAN
1
See More Details
A black rectangular automotive electronic control module with two large multi-pin connectors and mounting points, placed on a plain white background.

CL-4002

  • Input + Output
Primarily an output control module with input options used to drive valve and body outputs. Can be used as primary.
Inputs
10 (total I/O)
Outputs
Digital (8) / Analog (2)
Current
5 A
CAN
2
See More Details
