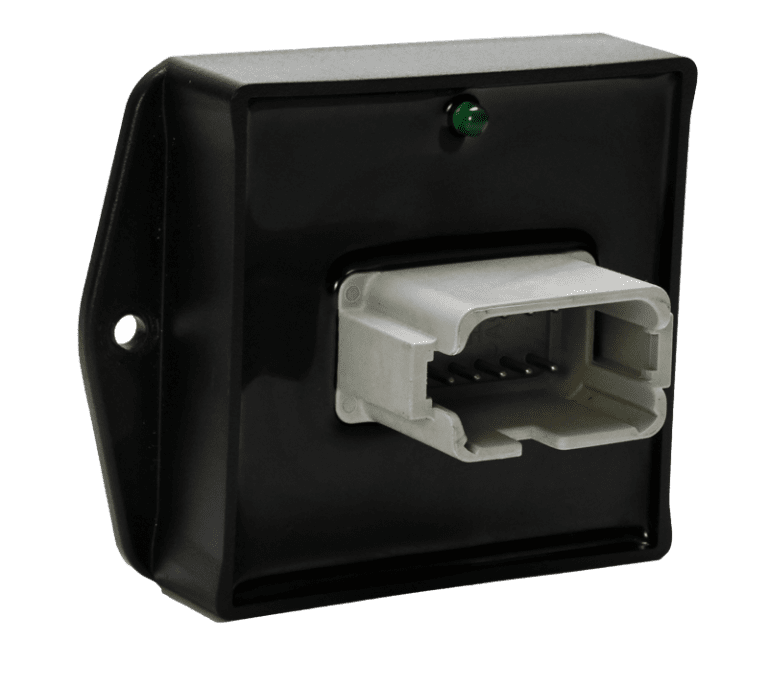

Typically used as a small, low cost I/O expander to enable limited functions or remote functions.
Inputs
4
Outputs
4
Current
2 A
CAN
1
Product Specifications
Hardware
Overview
16-bit HCS12X Microcontroller running at up to 50 MHz
MCU
S9S12XS256
Flash
256 KB
RAM
12 KB
interfaces
CAN
1x J1939 CAN port
Mechanical
Housing Material
Noryl
Installation
Panel mount
Connectors
DT06-12SA W12S (wedge) – one per connector required 0462-201-16141 16AWG sockets 114017 Sealing Plugs – Unused pins are required to be sealed to maintain module sealing
Dimensions
4.05″ x 3.10″ x 1.77″
weight
~0.45 lbs
contacts
16-18 AWG: 0462-201-16141
14-16 AWG: 0462-209-16141
Plugs
Non-locking: 114017Locking: 0413-217-1605
Wire Size
14-16 AWG or 16-18 AWG
Mounting & Torque
8-32 or M4 Fastener18-23 in-lb
Indicators
1x Green Status
Electrical
Operating Voltage
8-32VDC
Key Switch
No
Max I/O Available
4/4
Inputs
4x Inputs software configurable as switch to battery, switch to ground, 12-bit analog, Frequency, PWM or Quadrature Encoder
Outputs
4x pins software configurable as 2A PWM outputs with estimated current feedback or switch to battery input o or 2.5A digital outputs (software configurable as PWM or Digital)
