Control Modules
We offer a variety of rugged control modules built to manage complex mobile applications.
For four decades, HED has partnered with OEMs to architect intelligent, rugged control systems for tough, mobile applications. Our electronic control modules are the heart and brains of the system, collecting real-time input and providing direction to various vehicle functions.
Search for the Control Module Options You Need
- Gateway
Provides gateway control, bridging and filtering multiple CAN networks. Creates a firewall between networks.
Inputs
2
Outputs
1
Current
0.5A PWM output
CAN
3 plus 4 other comm ports
- High Current, Output
A compact unit that can drive higher current loads for lighting, pumps, fans and small motors.
Inputs
5
Outputs
8
Current
10A PWM outputs
CAN
1
- Output
A compact module typically used for hydraulic solenoid control to maintain constant speed and flow.
Inputs
5
Outputs
8
Current
2A PWM outputs
CAN
1

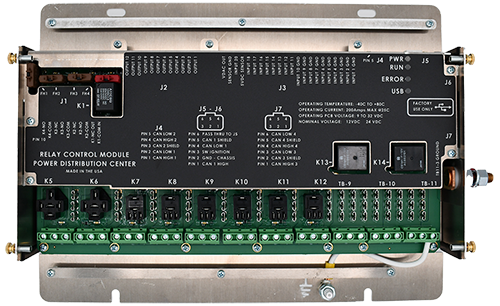

- High Current
A system-primary controller combining solid state controls with high current mechanical relays. In cab use only.
Inputs
19
Outputs
Solid State (12) / Relay (14)
Current
200 A
CAN
4 (2x standard)

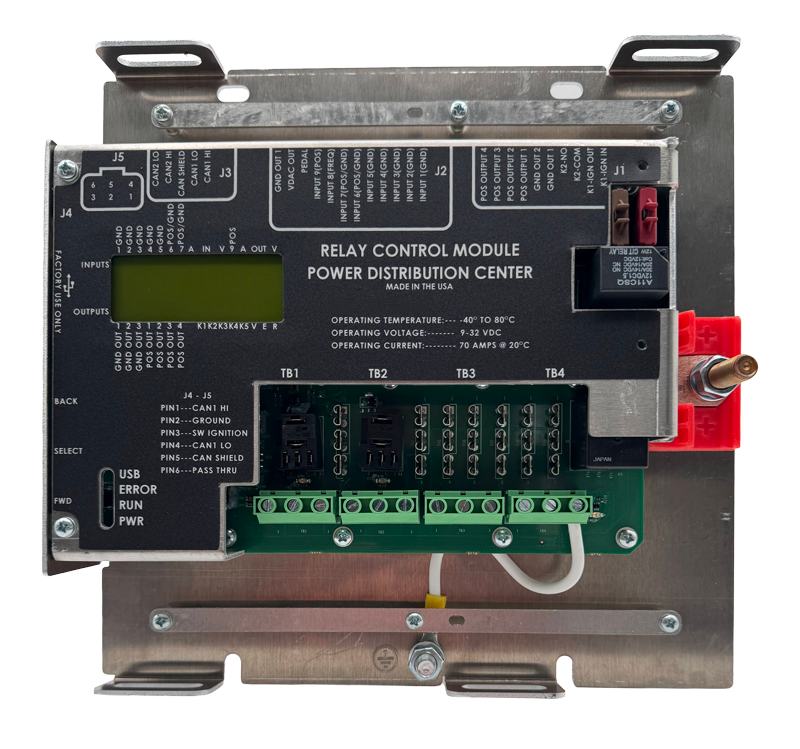

- High Current
Similar to the CL-310, but with a smaller package, a built-in LCD for diagnostics and lower current capabilities.
Inputs
10
Outputs
Solid State (7) / Relay (5)
Current
100 A
CAN
2
- Input + Output
Primarily an output control module with input options used to drive valve and body outputs. Can be used as primary.
Inputs
10 (total I/O)
Outputs
Digital (8) / Analog (2)
Current
5 A
CAN
2
- Input + Output
High density analog input module with sensor power supply and a mix of direct power outputs.
Inputs
20
Outputs
8
Current
5A PWM output
CAN
3 plus 4 other comm ports
- Input + Output
Typically used as a small, low cost I/O expander to enable limited functions or remote functions.
Inputs
4
Outputs
4
Current
2 A
CAN
1
- Input + Output
A powerful body controller with high I/O and multiple CAN ports allowing a bridge to multiple CAN networks.
Inputs
36
Outputs
33
Current
3 A
CAN
3
- Input + Output
Compact and typically used to drive stacked valve drive sections or outputs condensed into a single location.
Inputs
17 (total I/O)
Outputs
16 (available)
Current
3 A
CAN
1
Reliable Controllers
We’ve designed our wide selection of electronic control modules to support the rough-duty applications that construction, military, and vocational OEMs face.
Scalable I/O
We offer a wide variety of control modules to match your input and output requirements, from simple to the most complex applications.
Reliable communication
Our controllers operate across standard J1939 CAN or CANopen systems and communicate seamlessly with other CAN components.
Extreme durability
We design our electronic control modules to withstand rough shock and vibe conditions and a wide operating temperature range of -40°C to +70°C.
Simplified programming
Choose standard development software tools for simplified setup and configuration, or leverage a board support package to integrate your own specific tools.

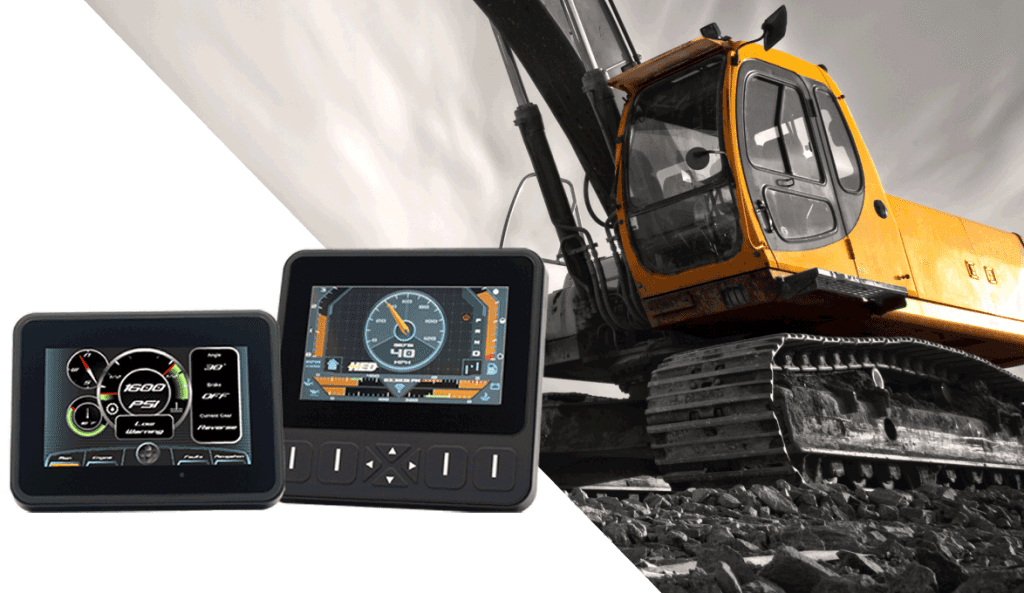

Full System Control
Complement your vehicle controls with a robust visual interface to help inform and enhance the operator experience.
Ready To Get Started?
Connect with our team of experts to discuss your project and discover how HED can provide tailored control solutions for your vehicles.
